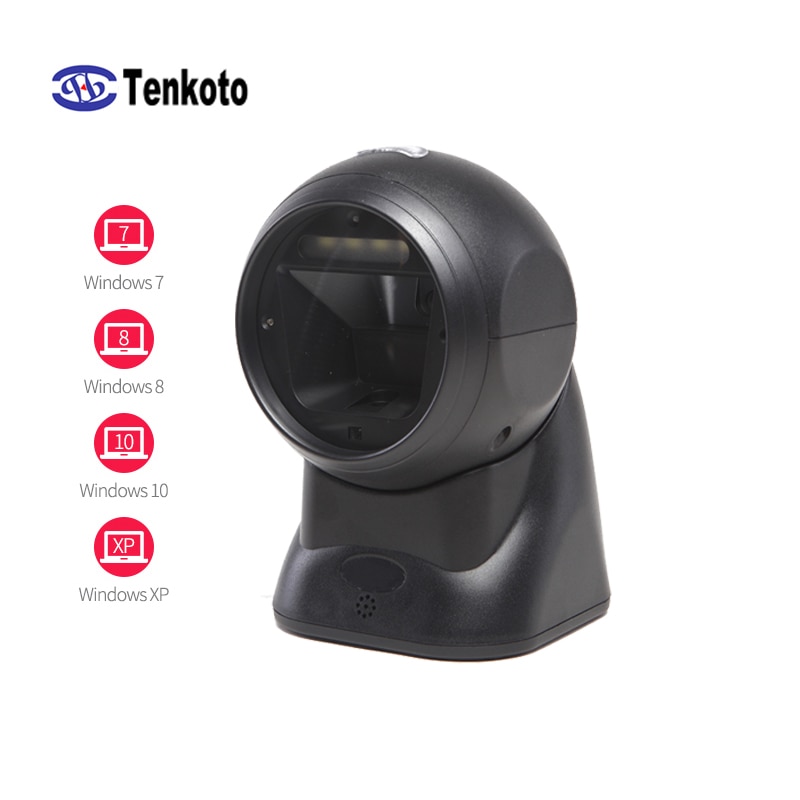

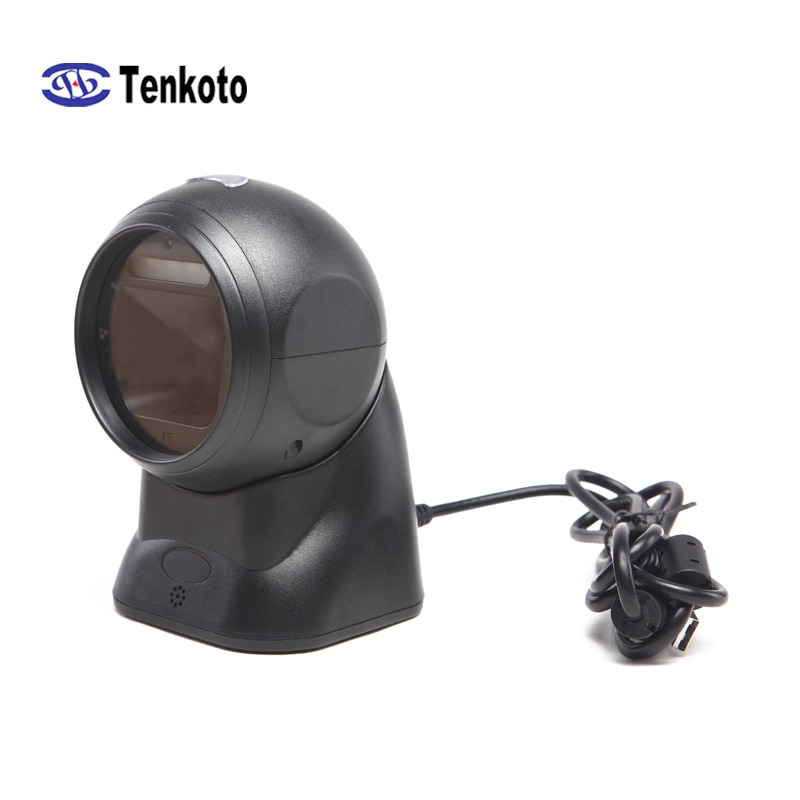

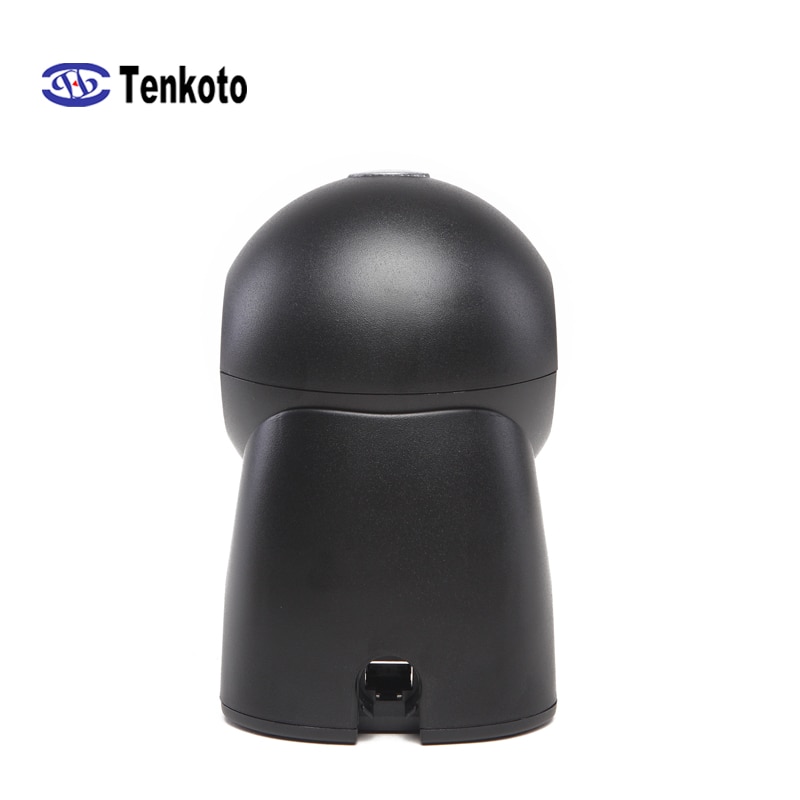

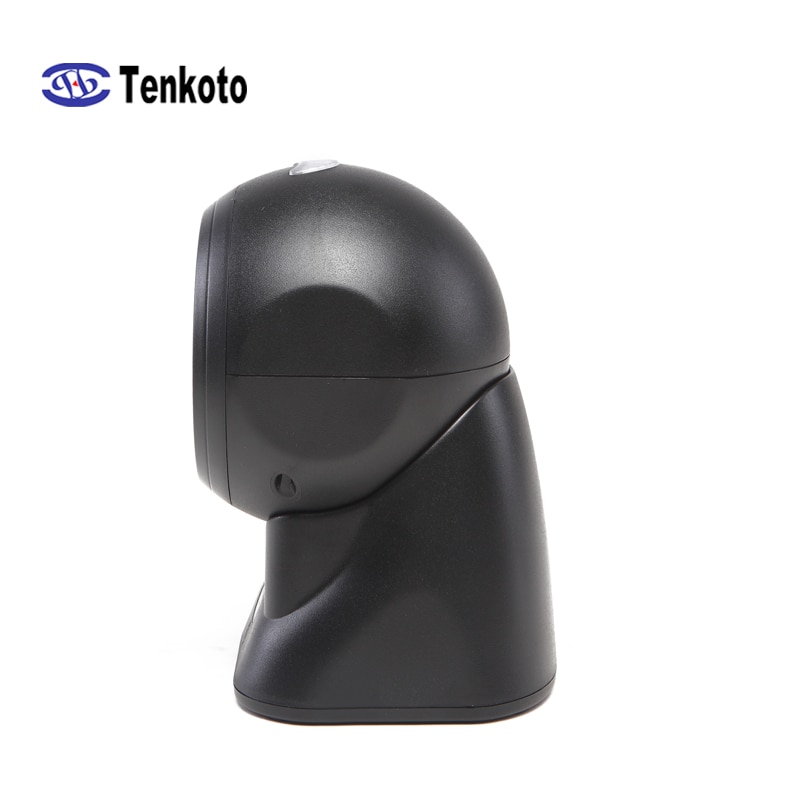

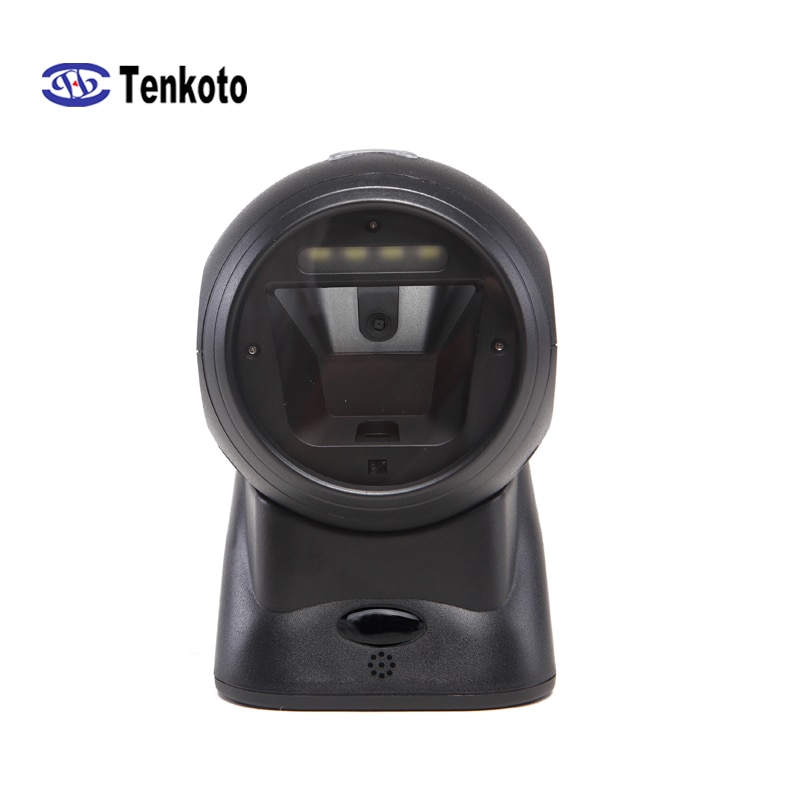

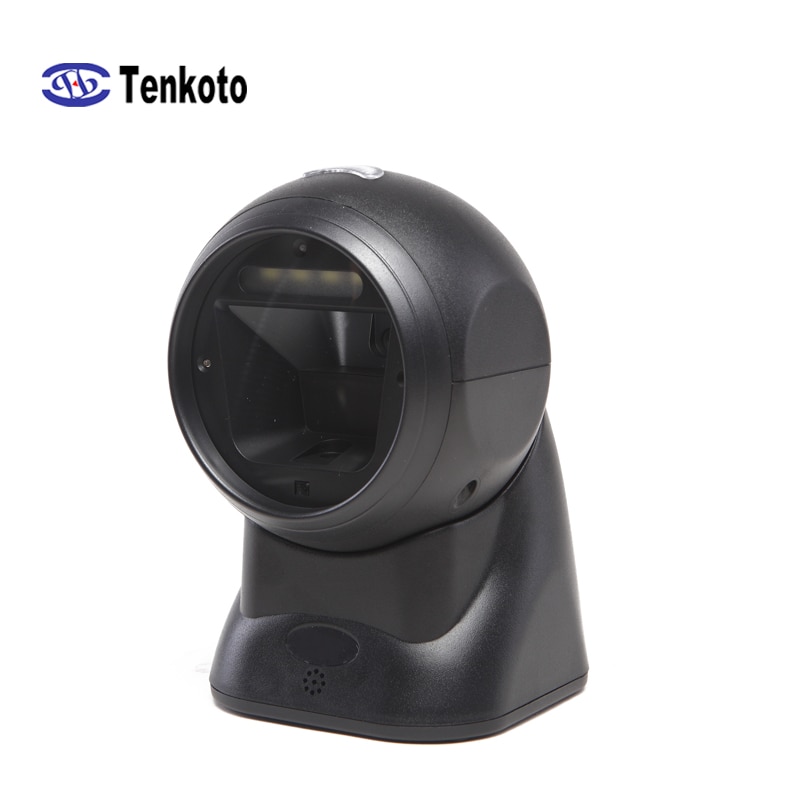

USB 1D 2D QR Desktop Barcode Scanner T-8180T


Features

Quickly identify the screen 1D 2D code.

Lightning billing dedicate.

Appearance with ergonomic design.

Stable, precise, convenient, practical and efficient.

Compatible with a variety of systems.

Application Scenarios: Supermarket payment and inventory.



Specification

Sensor :

CMOS

Pixel :

752*480 CMOS

Light source:

White  LED

Barcode Sensitivity:

±50°@ 0°Roll and 0° Skew ±360°@ 0°Pitch and 0° Skew          ±60°@ 0°Roll and 0°Pitch

Contrast:

≥30% Reflection Difference

Motion tolerance:

2.5 times/s

Visual Indicator:

LED & buzzer

Reading accuracy:

≥5mil

Interface

USB HID-KBW. USB  Virtual serial port. USB HID-POS  . TTL-232

RS-232 interface

Supported Bar code1D

Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5,Industrial 25, Standard 25, Code 39, CodabarCode128, UCC/EAN-128, AIM-128, EAN-8, EAN-13,  ISBN/ISSN, UPC-E, UPC-A, RSS-Expand Codabar, Code 93, Code 11,Plessey, MSI-Plessey, GS1-DataBar (RSS), (RSS-14, RSS- Limited)

Supported Bar code (2D)

PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140) Hanxin code

Physical parameters

Size:

106*111*155mm

Weight :

320g (scanning platform host only)

Prompt mode :

Liyin speaker, LED indicator

Stand-by current:

190mA

Working current :

240mA

Environmental parameters

Working temperature:

-20℃+50℃

Storage temperature:

-40℃~+80℃

Relative Humidity:

5%~95% (Non-condensing)

Drop height:

6 face 1.2 m concrete floor drops (one on each side)

Electrostatic Protection :

±14 kV (air discharge), ±8 kV (direct discharge)

Drop/Shock Resistance:

withstands multiple times 1.2 meters drops to concrete

Protection Level :

IP52

Depth of field and resolution  (1MIL=0.0254MM)

EAN-13:0cm—20cm(13mil)      PDF 417: 0cm-7cm(6.67mil)        Date Matrix  : 0cm-4cm (10mil)      QR Code: 0cm-10cm(15mil)          CODE 39: 0cm-12cm(5mil)






UG-8180T 1UG-8180T 3

UG-8180T 4UG-8180T 6UG-8180T 8UG-8180T 9
